Quality chasers for Geometric Style Die Heads
How to order...

Quality chasers for Geometric style die heads are available in several configurations. The cutting edge grinds or hook angles vary depending upon the type of material that the chaser will cut. The chart below lists our recommendations for cutting various materials.

The standard chamfer angle is 33° on regular style chasers and 45° on projection style. This chamfer angle may be changed to suit the job, since tool life will be greatly enhanced by lengthening the chamfer and spreading the cutting load over a larger area of the chaser.

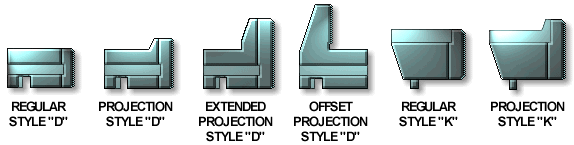

Quality CHASERS FOR STYLE D & STYLE K DIE HEADS
RECOMMENDED CUTTING FACE ANGLES

MATERIAL STRAIGHT THREADS TAPERED THREADS
g-alum (1K) Cast 15° Radial Hook 10° Radial Hook
Die Cast 15° Radial Hook 10° Radial Hook
Bronze Cast 10° Hook 5° Hook
Rod 15° Radial Hook 10° Radial Hook
Stamping 15° Radial Hook 10° Radial Hook
Bakelite 5° Snub 5° Snub
Beryllium 15° Hook 10° Hook
Bar 5° Hook Straight
Cast 5° Snub 5° Snub
Forging 10° Hook 5° Hook
Red 10° Hook 5° Hook
Stamping 10° Hook 5° Hook
Tubing 10° Hook 5° Hook
Naval 10° Hook 5° Hook
Yellow 5° Hook Straight
Bar 10° Hook 5° Hook
Cast Straight Straight
Cast Aluminum 10° Hook 5° Hook
Manganese 10° Hook 5° Hook
Naval 10° Hook 5° Hook
Phosphor 10° Hook 5° Hook
Silicone 5° Hook Straight
Tubing 10° Hook 5° Hook
Celluloid Straight Straight
Copper 15° Radial Lip Hook 10° Radial Hook
Delron Straight Straight
Drill Rod 10° Hook 10° Hook
Everdur 10° Hook 5° Hook
Fiberglas 5° Hook 5° Hook
Fibre 5° Snub 5° Snub
Formica 5° Hook 1px (1K)
Hastalloy 15° Hook 10° Hook
Iconel 15° Hook 10° Hook
Invar 15° Hook 10° Hook
Black Pipe 10° Hook 5° Hook
Caste Straight Straight
Ductile Straight Straight
Gray Straight Straight
Malleable 10° Hook 5° Hook
Wrought 10° Hook 5° Hook
Magnesium 15° Radial Hook 10° Radial Hook
Manganese 15° Hook 10° Hook
Monel Metal 10° Hook 5° Hook
MATERIAL STRAIGHT THREADS TAPERED THREADS
Nickel 15° Hook 10° Hook
Nylon 5° Hook 5° Hook
Plastic 5° Hook 5° Hook
Polypropylene 5° Hook 5° Hook
Rubber 5° Snub 5° Snub
12L14 & 12L17
A-36
10° Hook
15° Hook
5° Hook
10° Hook
Bessemer Screw 10° Hook 5° Hook
Bolt, grade 2 & 3
Bolt, grade 5 & 8
10° Hook
15° Hook
5° Hook
10° Hook
Cast 10° Hook 5° Hook
Carbon
      - SAE 1010-1035
    - SAE 1112-X1340
      - SAE 1040-1095

10° Hook
10° Hook
15° Hook

5° Hook
5° Hook
10° Hook
Chrome
    - SAE 5120-52100

15° Hook

10° Hook
Chrome Vanadium
    - SAE 6115-6195

15° Hook

10° Hook
Forged 15° Hook 10° Hook
Leaded 10° Hook 5° Hook
Manganese
    - SAE T1330-T1350

15° Hook

10° Hook
Molybdinum
    - SAE 4130-4820

15° Hook

10° Hook
Nickel
    - SAE 2015-2515

15° Hook

10° Hook
Ni-Chrome
    - SAE 3115-3450

15° Hook

10° Hook
Nitralloy 15° Hook 10° Hook
Rolled (Hot & Cold) 10° Hook 5° Hook
Semi-Casting Straight Straight
Stainless
    300 Series
      400 Series

15° Hook
10° Hook

15° Hook
10° Hook
Stamping 15° Hook 5° Hook
Stress & Fatigue Proof 10° Hook 10° Hook
Stress Proof 8620 15° Hook 10° Hook
Tool 15° Hook 10° Hook
Tubing 10° Hook 5° Hook
Titanium 15° Hook 15° Hook
Teflon 5° Hook 5° Hook
Zinc Diecast 15° Radial Hook 10° Radial Hook
